Introduction

The water filled submersible motor applies a water-lubricated design, internal filling solution contains pure water lubricated. Pure and clean water are filled into the motor, in case environment pollutions are created. Thus, the water-filled motor can be called as environment protection style motor.

With waterproof wire rewinding and excellent electrical performance, the submersible motor has high efficiency and fast easy maintenance.

Stainless steel casing make the submersible motor corrosion resistance, fast heat dissipation and resistance to deep water pressure, whose working diving depth can be up to 300 meters.

Suitable for all kinds of submersible pump to provide best power under water.

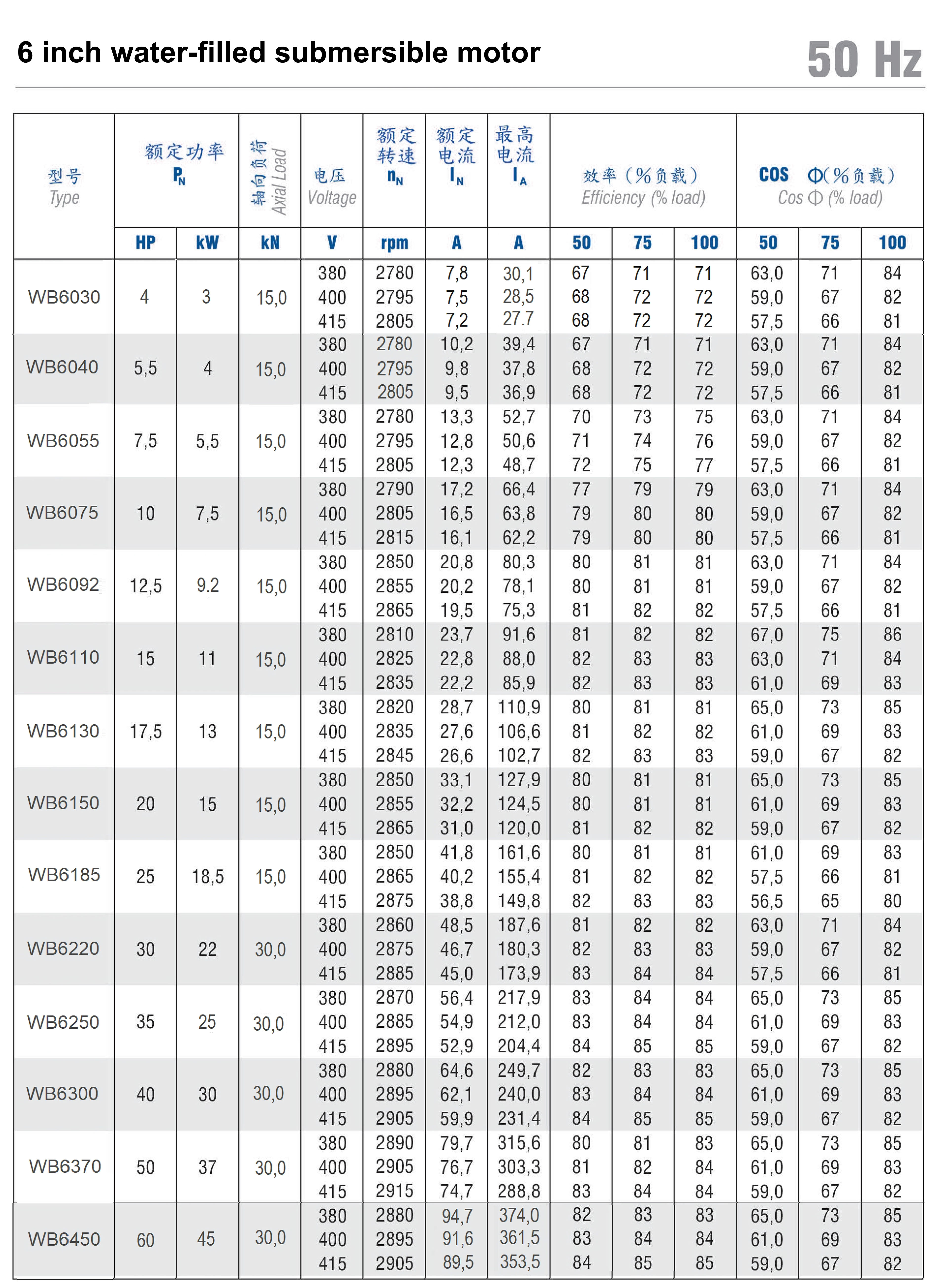

Specification

• 6” NEMA flange

• Voltage tolerance ±10%

• Degree of protection: IP 68

• Insulation Grade: F

• With removable water-proof bolt

• Max ambient water temperature:30℃

• Max operating depth:300m

• CE, ISO 9001: 2015

Features

• Rewindable motors up to 110KW

• High efficiency provides operation cost savings

• Water coolant system

• Flange with NEMA standards

• Stainless steel shaft

• Optional high corrosion resistive materials (SISI304 - AISI316 - Duplex)

• Variable operation revolutions by frequency convertor (over 30Hz)

• Availability to be operated by Soft-starter

• CW & CCW direction of rotation
